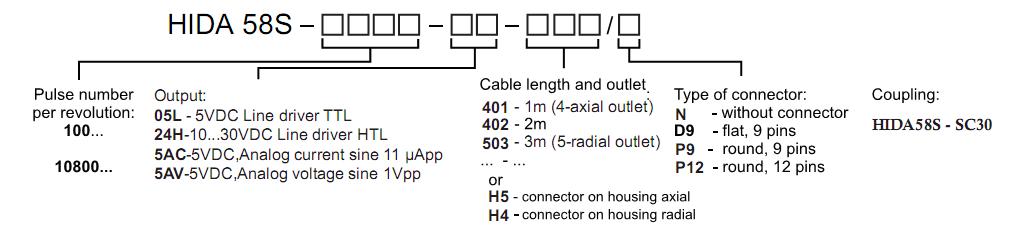

Electrical data
|
Code disc lines |
100, 250, 500, 600, 800, 1000, 1024, 1125, 1250, 1500, 2000, 2500, 3000, 3600, 4000, 5000, 9000, 10800 Lines |
| Pulse rate (square wave) |
K = 1, 2, 3, 4, 5, 8, 10 |
|
Voltage supply |
DC +5V +/- 5%; DC +(10 to 30V) (HTL) |
|
Accuracy |
+/- 0.1T arc.sec |
|
Output signal |
Square wave(TTL,HTL), sine 11uApp, sine 1Vpp |
|
Output frequency |
160 KHz |
Mechanical data
|
Housing diameter |
58 mm |
|
Shaft diameter |
6 mm |
|
Max. rotational speed |
12000 rpm |
|
Shaft load |
10 N axial
20 N radial |
|
Protection |
|
|
Material |
Bearing: Stainless steel
Housing: Cast aluminum |
|
Weight |
250 g (Without cable) |
Environmental data
|
Operating temperature |
-10°C…70°C |
|
Storage temperature |
-30°C…80°C |
|
Humidity |
98% RH |
|
Shock |
Max. 300 m/s2,11 ms |
|
Vibration |
Max. 100 m/s2,55…2000 Hz |
|
